Series: MEP®
Model: V2S
Material: Polypropylene
Dimensions:500 mm × 500 mm × 150 mm
Planting media height: 75 mm
Wall Extender: 75 mm / 250 mm
Reservoir capacity: 40 L/m2
Weight (Empty): 12 kg/m2
Weight (Planted): 150 kg/m2
Weight of Geotextile: 150 g/m2 to 200 g/m2

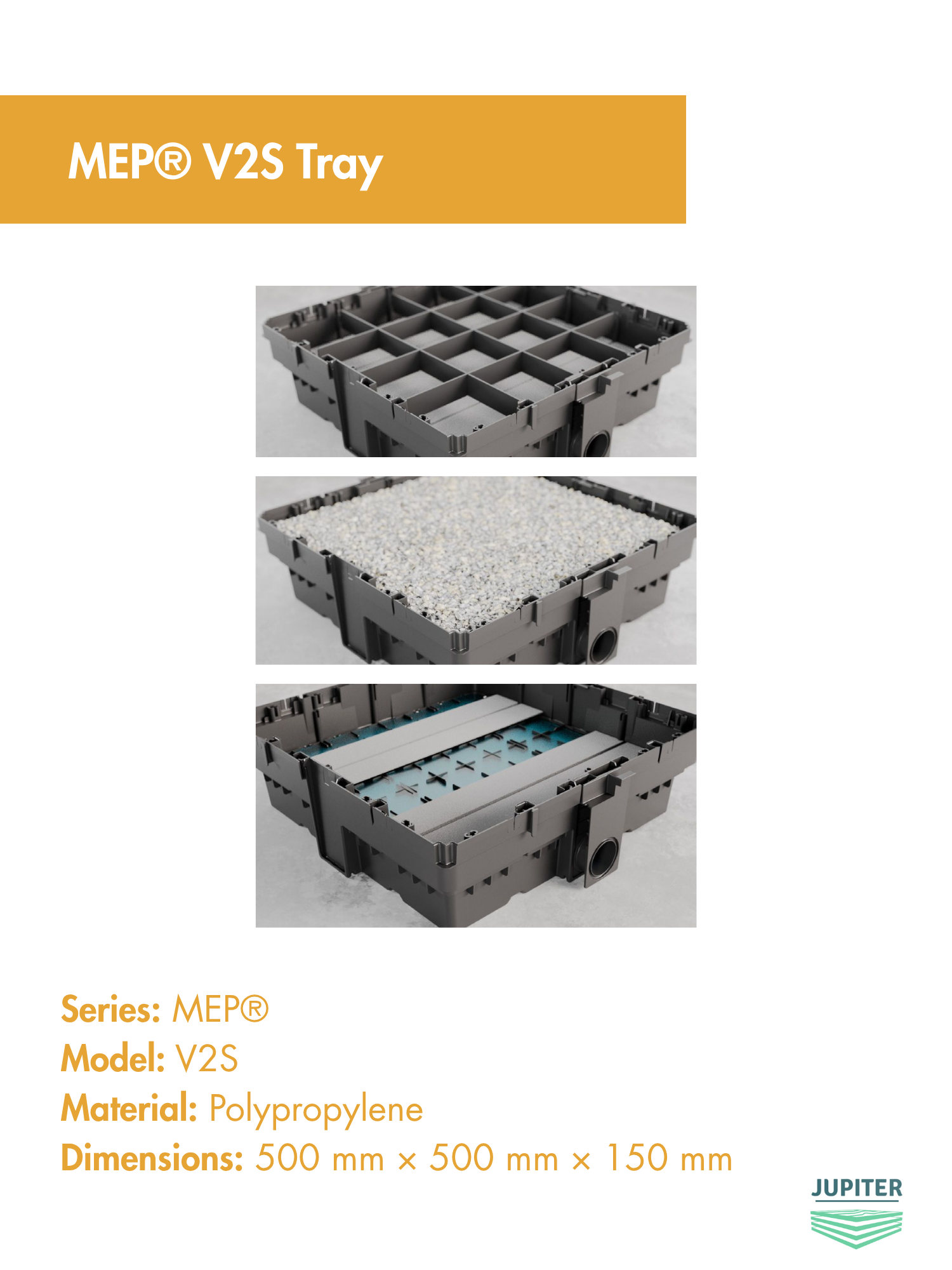

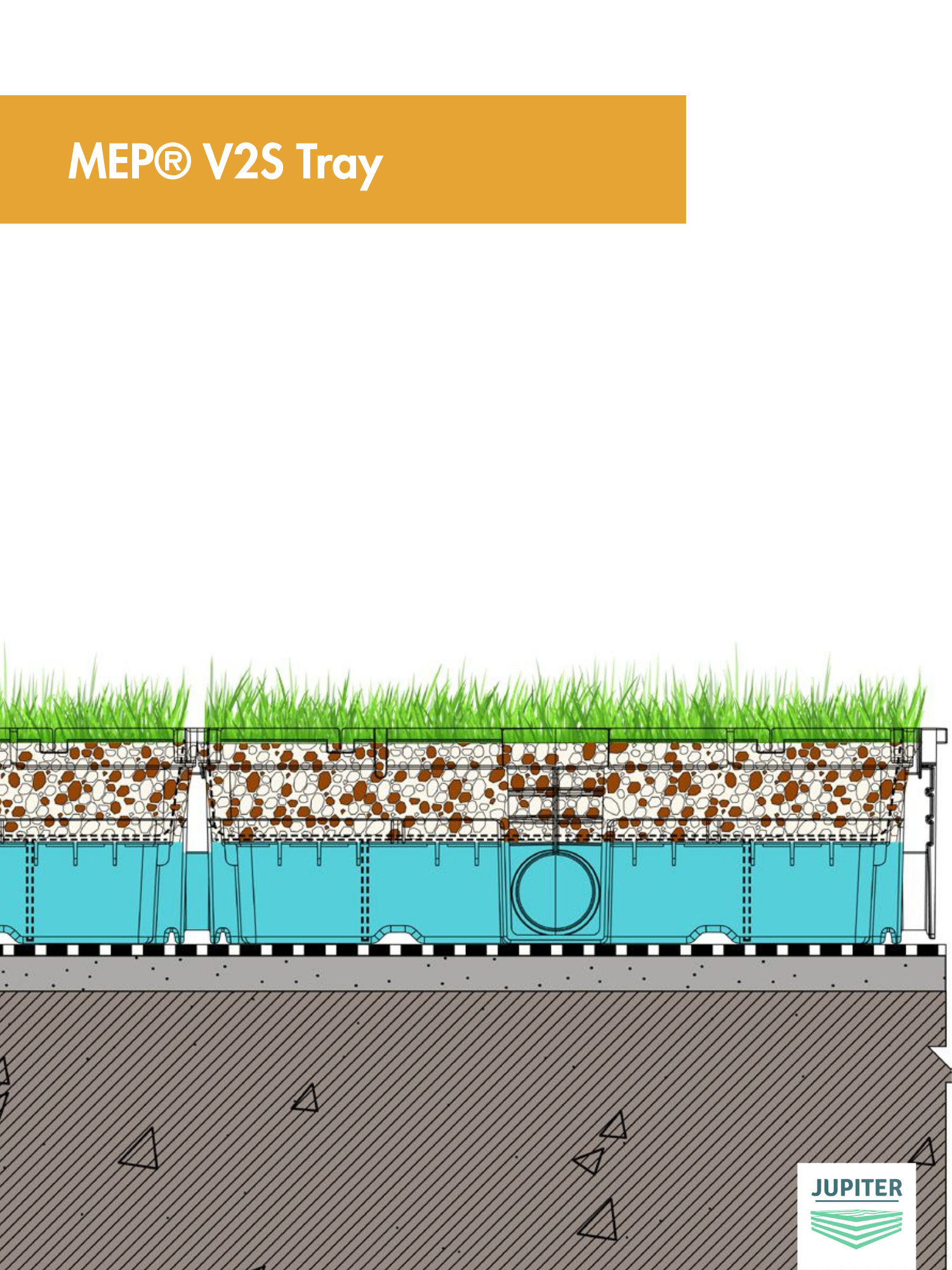

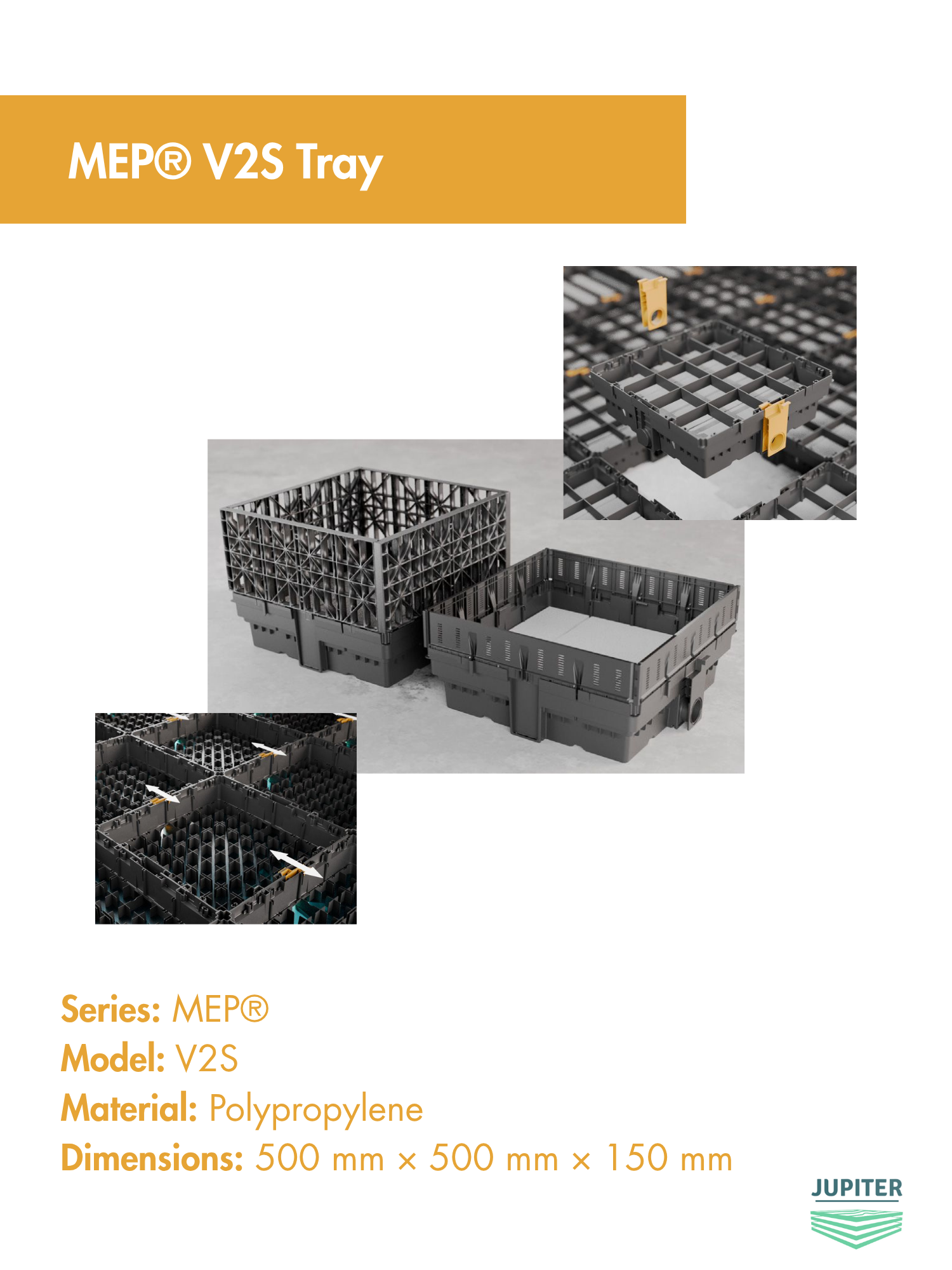

The MEP® V2S Tray is an integrated green roof solution combining media, drainage, and irrigation into a single pre-assembled unit. Designed for speed and uniformity, it's ideal for projects requiring modular, easily maintained green roof systems.
Each tray, including accessories, saturated planting media, plants and stored water, weighs approximately 38 kg. The self-contained MEP® V2S Tray may be pre-planted in a nursery prior to installation to achieve instant greening of rooftops.

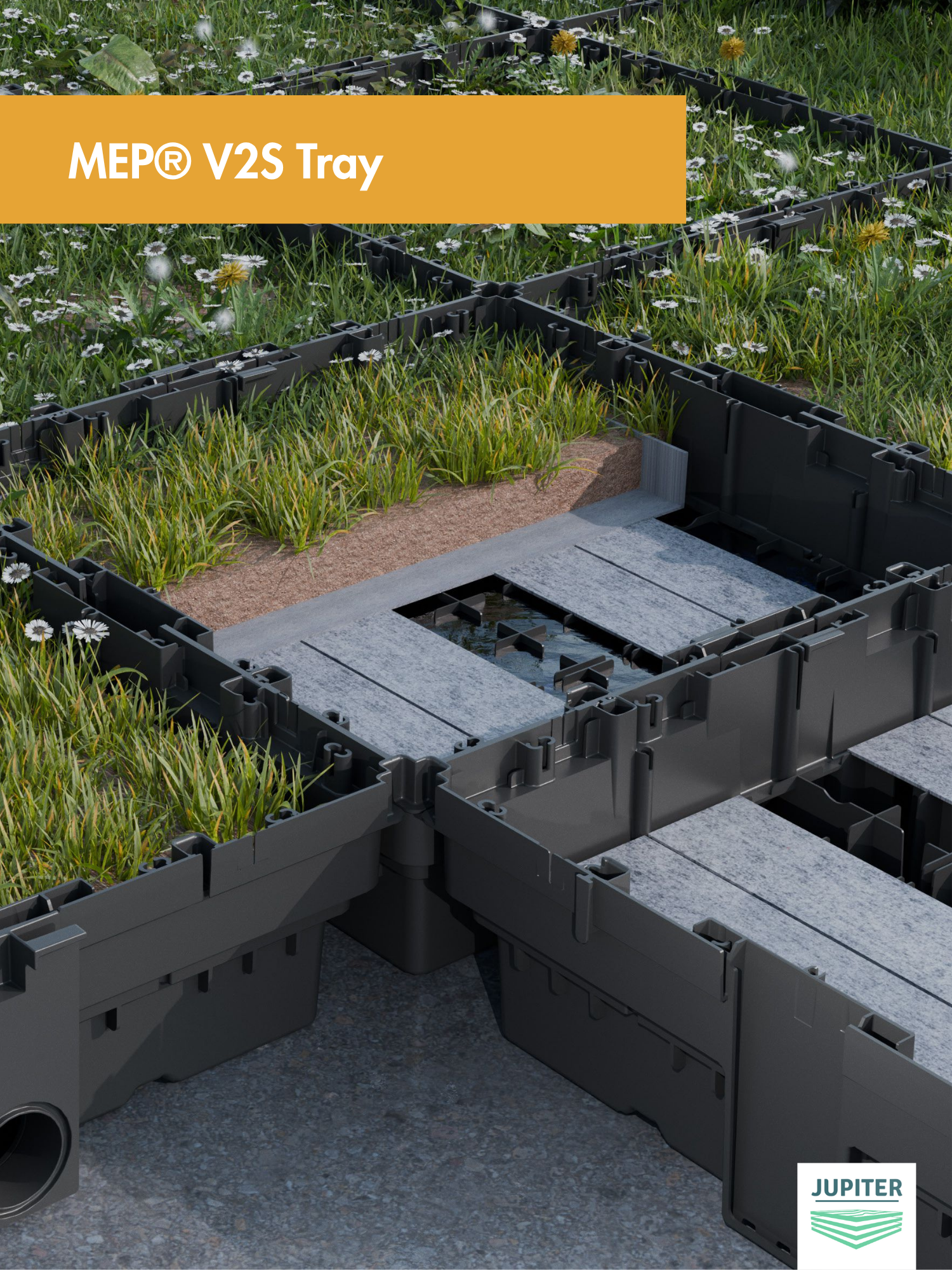

In the event that a layout modification is necessary, each MEP® V2S Tray can be added, removed, or rearranged without disruptions to the green roof’s functionality
Series: MEP®
Model: V2S
Material: Polypropylene
Dimensions:500 mm × 500 mm × 150 mm
Planting media height: 75 mm
Wall Extender: 75 mm / 250 mm
Reservoir capacity: 40 L/m2
Weight (Empty): 12 kg/m2
Weight (Planted): 150 kg/m2
Weight of Geotextile: 150 g/m2 to 200 g/m2
The MEP® V2S Tray is an integrated green roof solution combining media, drainage, and irrigation into a single pre-assembled unit. Designed for speed and uniformity, it's ideal for projects requiring modular, easily maintained green roof systems.
Each tray, including accessories, saturated planting media, plants and stored water, weighs approximately 38 kg. The self-contained MEP® V2S Tray may be pre-planted in a nursery prior to installation to achieve instant greening of rooftops.
In the event that a layout modification is necessary, each MEP® V2S Tray can be added, removed, or rearranged without disruptions to the green roof’s functionality
